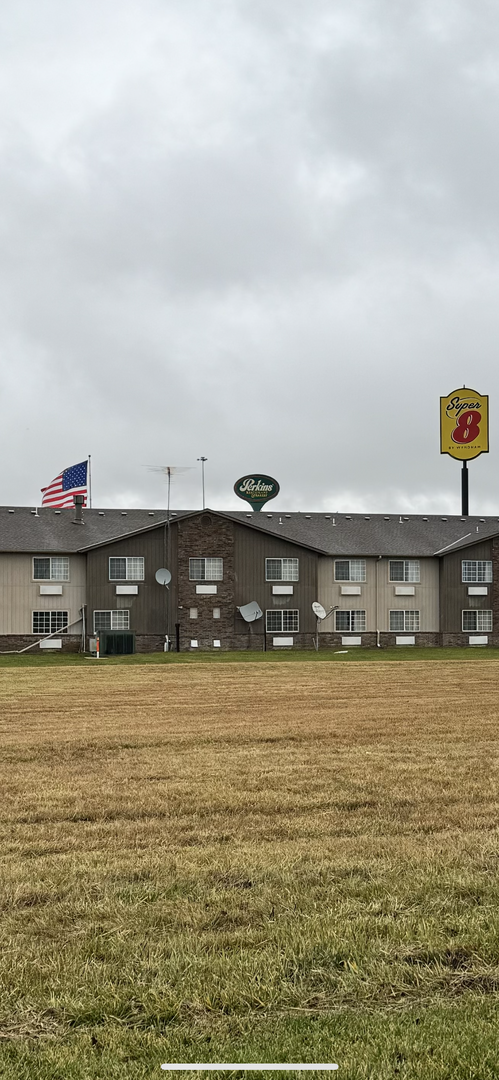

Square dish spotted at motel in Kansas

[comfortably_numb]

Don't recall seeing many of these previously. TV? Internet?



[ZetaMale]

Don't recall seeing many of these previously. TV? Internet?

I've seen a few of them around. I don't know what they're used for.



[a33]

It looks like a broader than high multifeed dish, with dish skewed?
A bit unclear on the photo, though.

Greetz,
A33



[N5XZS]

Looks like it's got 3 LNBF's on the square dish, when zooming in.



[comfortably_numb]

Looks like it's got 3 LNBF's on the square dish, when zooming in.

Yes, here is (hopefully) a better shot:



[N5XZS]

Might be 2 Ku and one Ka band LNBF'S, that's my best guess!



[Stuart Sweet]

Looks maybe like DISH's commercial antenna.



[lordodogg]

I have never seen those in my entire life!



[comfortably_numb]

Looks maybe like DISH's commercial antenna.

The commercial dishes I've seen Dish use are just 90cm dishes, some with heating pads on them. Maybe HipKat knows?



[Stuart Sweet]

Check it out : DISH FG, REFLECTOR KIT, COMMERCIAL ANTENNA



[comfortably_numb]

That's it! But it doesn't say what size?



[a33]

But it doesn't say what size?

And it doesn't say what opening angle / what needed illumination angle for the LNB. So a normal Ku LNB might not be optimal.

I've seen this kind of toroidal multifeed dishes with 'not normal' f/D ratios...

greetz,
A33



[Stuart Sweet]

I designed a system with one of those dishes, although I wasn't present for the install. There were specific kits for Western and Eastern arc.



[telstar_1]



[N5XZS]

Oh my, that's a one heck of a sexy dish to have with!!

HoA will have a heart attack!!p



[navychop]

Then you'll have no more HOA problems!
